SOLiD P2P WDM "CRM6400" COT/RT

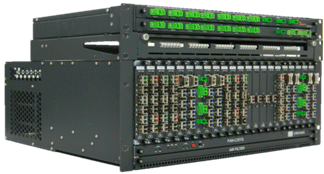

CRM6400 COT



  • Basic configuration:19 inch, 6U height, filter and cable tray are included.
  • Main Chassis: 4U for service units, power, etc.
  • COT-PS : 1U for optical filter modules.
  • Cable Tray : 1U for the cable management.
  • Stackable architecture for the capacity expansion.
  • Basic configuration is 1 ring with 2 RTs.

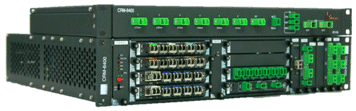

CRM6400 RT

  • Basic configuration:19 inch, 3U height, filter and cable tray are included.
  • Main Chassis: 2U for service units, power, etc.
  • RT-PS : 1U for optical filter modules.
  • Stackable architecture for the capacity expansion.



SOLiD WDM-PON OLT/Remote node/SFP type ONU

WDM-PON OLT

  • Capacity: 16Gbps (16ch X 1Gbps)
  • Distance: 30km
  • Chassis: 1U size (AWG, power included)
  • Wavelength: Colorless DWDM
  • User port: 16 port (SFP modules slot)
  • WDM port: 1 port (MC connector)
  • EMS port: 1 port 10/100Base-T (RJ45)



WDM-PON ONU (SFP type)

  • Rate: 1Gbps Optical Transceiver
  • Wavelength: Colorless DWDM
  • Connector: Duplex LC/UPC or Simplex Bi-Di LC/UPC





Outdoor type Remote node

  • Channel port: 16port
  • No electrical power (Passive component)





Indoor type Remote node

  • Chassis: 1U size
  • Channel port: 16port
  • No electrical power (Passive component)

SOLiD ROADM "ROMEO8000"

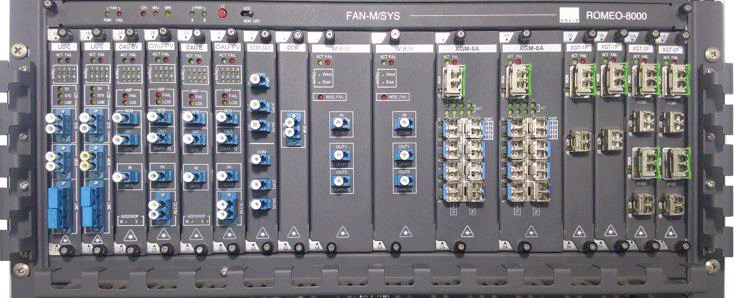

Main & Extension chassis/unit

  • Capacity: 7.2Tbps (80wavelength X 10Gbps X 9degree)
  • Topology: P to P, Ring, Ring to Ring, Multi Ring / optical add/drop
  • Front units: Supervision, Optical AMP, Optical Swich, Splitter/Coupler, Muxponder, Transponder
  • Rear units: Power, Fun, Control, Memory, Mangement
  • Protocol: GbE, 10GbE, STM-1/4/16/64(OC-3/12/48/192)
  • Wavwlength plan: 80wavelength DWDM(C-Band), colorless function
  • Distance: 80km(without AMP),960km(with AMP)
  • Mangement; GUI EMS
  • Dimension: 5U size (19inch rack)

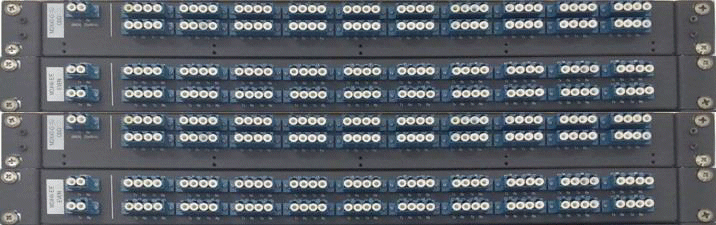

Mux/demux chassis

  • Capacity: 80 WDM port (80DWDM Wavelength)
  • Demention: 1U size (19inch rack)

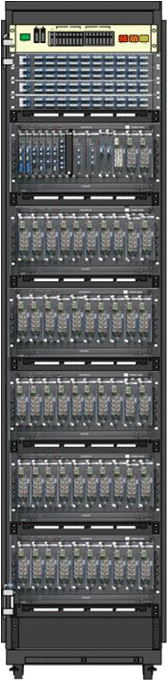

Example of setup (80ch X 2degree)
